The Below is a reply to a question i recently posted on some forums. 01 sept 2022.


Hi Andy,

It’s the WILD WEST out there regards Renewable Energy, (RE) systems.

I have been R&D independent non commercial on Renewable energy and True sustainability for over 20 years now,  yes things have changed and PV has become more efficient.

 In general, across the world, actual complete systems that do everything are rare and very expensive for what they actually are.

 So sorry, but if you are interested in setting up your own systems then you are going to have to sit down and go back to tech college and learn from all the folk who have something and actually running it.  Beware there are loads of armchair wafflers in RE.

Most small off grid systems like to take PV which has a DC output and charge a battery bank and have a standby generator for those murky days..

This battery bank then runs a main Inverter that takes DC at 12v, 24, and 48vdc and converts it to 230vac at 50HZ or 60HZ. Very Few small Main Inverters are actual Pure Sine wave, so some motor driven appliances may not work correctly.

…………..

Then there are slightly larger systems built around a normal Utilities connected electricity supply. And the PV DC output now goes to a GTI, Grid tied Inverter, that uses the Utilities Grid to sync- with and then pushes the AC voltage up a few volts and backfeeds to the Utilities Grid, and your meter goes backwards, (not any more but you get the drift) or you are credited by the utilities for supplying them with green energy.  You can also use this GTI created AC 230v for your own use, so the utilities grid is a Virtual Battery. In France you can only connect a 3KW system into the EDF.

Then we have a bigger systems that have a small battery, I call a small battery below 40KW and the main Inverter acts as the battery charger, GTI, and switches over automatically depending on the energy its getting can also switch on a standby generator etc.

Each manufacturer has compatibility issues so most systems will have just one manufacturer supplying just their equipment.

Then we have serious systems across the world that are commercially installed but then the whole concept of using renewable energy becomes not cost effective as the installation can be silly and very expensive money.

Okay, so what’s next, sorry it’s a minefield out there with loads of unscrupulous manufactures and very dodgy so called specialist commercial companies trying to sell you stuff that does not fit my criteria’s.

My Criteria’s, Is the product SIMPLE? Is it ROBUST?  is it COST EFFECTIVE? can it BE REPAIRED?

SIMPLE,  Some RE stuff is over complicated because the manufacturers make more money if its got loads of bells and whistles.

ROBUST,  Is its lifespan long?  Does it actually run at the manufacturers published outputs? and can it take harsh conditions, and is it easily repairable?

COST EFFECTIVE, do the financial figures add up.

REPAIR,   Last year this was possibly not an issue, as most commercial manufacturers tended to do a swap out if the product was faulty. But to day, with shaky supply lines and specialist electronics that are superseded very quickly, products should be repairable. My Ethos, “ Make it once  and keep it going for  the sake of the Planet”. But sadly, most commercial folk see no money to be made by having stuff repairable.

If you have an electric car you want to charge during daylight hours, a pool to heat etc then you are looking at 30KW of PV. Remember that in the winter gloomy days you may only get 3KW out of a 30KW PV system.

What stuff do I recommend?   Sorry I cannot publish the Bad, as some companies hate me!.

But here is a short list of manufacturers that are okay at present.

PV, loads of China stuff but LONGI and TRINA are okay and at a reasonable price, LG are very good. Other good manufactures have stopped making PV as their profit margins were reduced.

GTI’s Sorry can’t recommend any that are in production at this present time. Older ones  yes but the utilities insist that the it’s a new GTI machine with all the correct paper work chase.  We use SMA Sunny boys, Toroid type GTI’s and all are second hand/used as they are very cheap and good quality.

Main Inverters that change 24vDC and 48vDC to 230vAC 50HZ & 60HZ pure sine wave output, just one that is consistent called VICTRON, and uses old toroid technology and is based in Holland, (sadly there stuff is made in INDIA but is inspected and tested in Holland)  They only go up to about 5KW output each but you can link them together to get up to a max of about 14KW, but have a good range of machines. These main inverters can also AC COUPLE.

Batteries, for normal domestic off grid use then I recommend above 800ah 48vDc 1200ah/60KW is best.  ROLLS or SURRETTE based in Canada on the US border, make a range lead acid just for Off Grid sytems etc, There is BATER in Poland who make Forklift OPZs lead acid and Sonnenschein who make a range of OPZ’s however the latter have manufacturing plants, but may be just importing the basics and assembling rather than controlling the original QC.

Okay, Over 20 years we have ended up designing and making all our own stuff to my criteria’s, and that makes us very independent, even published a few books to show others. And on most good RE Forums across this World where there are some real smart cookies..

PV is from China now, but I have a crystal ball and saw the supply lines and the greed coming so got my stuff way ahead before Christmas 2021, I share a full pallet load of 36off 400w PV panels by Trina, pretty well much through just a French Importer.

MAIN INVERTER. The OzInverter made here, and published a book on how to make a real Simple, Robust and very cost effective 6KW running all day, 15Kw for 20 minutes or so and take surges of up to 50KW.   Importantly because of its design it can handle up to 11Kw of AC COUPLING and back charge the batteries.  I note in a book review,  “This is real, and shows best practice in making an Inverter”

Solar Trackers that can have 3.2KW of PV each, Simple and Robust and again very cost effective. Been up and withstood hurricane wind conditions.  Another book.

Wind Turbines. 3 off 3.7m diameter to Hugh Piggotts design, all made here from raw materials, Another small book.

WE do AC coupling here big time, but design simple systems.

At present doing the R&D on a modern version of a lead acid PLANTE battery. Each is 2v cell about 440ah to 500ah and weighs about 55kg, for 48vdc system we need 24off. As you use the PLANTE battery the amperage improves. Life expectancy with the PLANTE is about 25 years. Each battery cost about 200 euro in materials to make.  Yes, doing another book.

One day soon we will have an open weekend. Might even do some short week or weekend courses.



 Off Grid & Your Own Mini Grid.

A Guide to the Basics …

 Creating your own Renewable Energy creation, its terminology, its distribution and handling and its use in a normal domestic household.

For newcomers, this Chapter is the present state (March 2020) in achieving and supplying your own electrical power, ie, Off Grid.  And I will talk about renewable energy, its terminology, its distribution and handling and its use in a normal domestic household.

Off Grid is always going to be difficult to fully understand, as there are so many variables with your own particular situation. The World is changing, and folk see generating and using their own created power as a big step forward.

I will give costs in Euros/US Dollar, and Items that I mention can/are purchased in Europe.

Please remember that the costs do not include Installation charges and the Installer charges, both of which can be very excessive, and make the project not cost effective.

For a normal Domestic property.

1.     A renewable energy supply , eg, PV, Photovoltaic Panels.

2.     Controlling the energy supply to charge the batteries, Charge Controllers, and AC COUPLING.

3.     Batteries, power storage.

4.      OzInverter, converts a low voltage 48vDC to a 240v/120vAC & allows AC to back charge and create a low voltage DC.

5.      Standby Power supply..

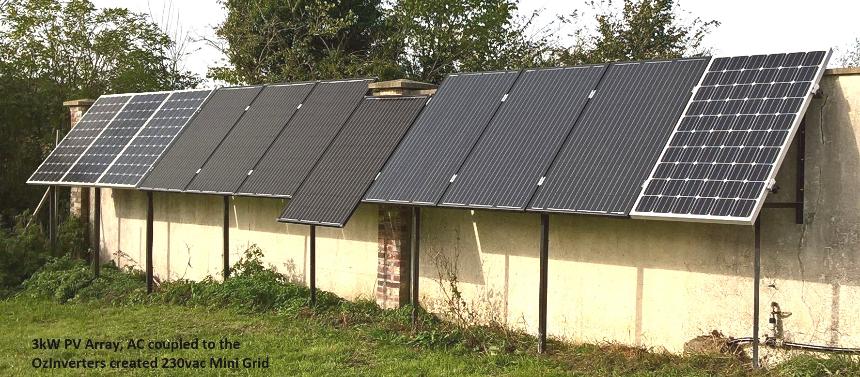

1.  PV.  Photovoltaic Panels.

PV Panels should face the Sun at Midday for the Spring and Autumn Equinox.

Manufacturing costs for these PV panels has drastically reduced over the last 20 years, and therefore making Renewable Energy electricity production at a very good cost effective solution.  All PV production is a DC voltage and this will need to be converted to a AC domestic voltage for a normal house.

On average 15,000 Watts, or 15kW is about correct for a normal dwelling/house, so 15kW of PV would take  a required space/size in your garden with a PV array of between  20 meters by 5 meters and 25 meters by 3.4 meters

That would be for 60 panels at 250w each and 1.6m x 1m each, 3 rows of 20 would be 20 meters by 5 meters.

For the latest up to date more efficient PV panels at 330w that are 1.8m by 1.1m each, 3 rows of 16 would be a space of 18 meters by 5.4 metres.

In 2019 15kW of PV Mono Crystalline panels can be from 4.500e to 9,200 Euros.

 The latest 'Longi' Mono 370w PV panels are (Nov 2020) now about 110 Euros each. Longi is what i would call a medium quality Panel manufacturer.  LG, Panasonic, are top of the range.

2.  DC Charge Controllers.

These regulate the Power coming from your PV to safely charge your battery bank.

The photo on the left shows commercially available PWM, and MPPT good quality controllers.

Some of these can take up to 200volts dc Input and give out a regulated and controlled 48volts dc at 60amps, thats 2.8kWatts, (Amps X Volts = Watts) into your 48 volt battery bank.

You will need many controllers operating and controlling the PV panels, and each controller can be from 200 to 850 Euros.

‘OzInverter’ AC COUPLING, and Back charging the batteries.

I have always seen AC coupling as the way forward, rather than just DC and many expensive charge controllers just feeding the batteries and powering a large Inverter that creates 240vac PSW, (pure sign wave).

Some time ago I originally bought a very expensive, so called Rolls Royce of commercial Inverters, 48vdc to 240vac, Firstly it couldn't do the specified 6kW and found that it could only do 4.2kW constantly. Secondly it needed a lot of expensive propriety ancillary control equipment to function and back charge the batteries correctly. And thirdly It raised the 240vac HZ frequency from 50HZ to 60HZ and domestic equipment failed.

It went back, and the company put a gagging order on me not to talk about their crap toy Inverter.


'Oztules', on Flinders Island, Tasmania, stepped in, and like me he wanted a true and real Inverter that would do the AC coupling using a H bridge design, and without all the fuss.   Our Mantra .... KEEP IT SIMPLE, MAKE IT ROBUST, and importantly MAKE IT COST EFFECTIVE.

And hence we designed and created the efficient and powerful ‘OzInverter’, that you can make your self. And yes, I can supply all the necessary PCB boards and a DIY Book.     See …………. Leslie Bryan Microengineering (bryanhorology.com)

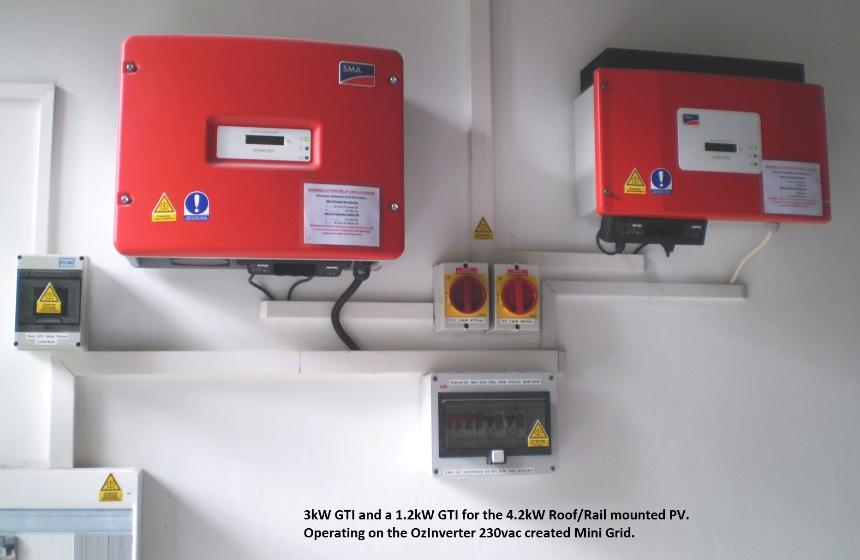

A very cost-effective solution for handling that 19kW of power from the PV panels arrays, is to use what is called 'AC Coupling'.

Houses that you see around the World with PV on the roofs will be using GTI's, (Grid Tied Inverters) that take the PV DC output and change it to AC and feed it back at a few volts more into the Mains Utilities Grid for that Country.

These GTI's are slave machines and need to see the correct AC voltage and the correct HZ frequency, so to get their internal electronics/transformer to operate before they will feed into the Grid a few volts over the Mains Utilities supplied voltage.

There are many Good Quality GTI's available second hand, i use fleebay etc, and i prefer GTI's with a toroid transformer,   see below photo of previously used SMA's........ .       150 to 300 Euros each.

Now our 48vdc ‘OzInverter’ creates a very stable 240vac or 120vac at a stable 50H or 60HZ, depends on your country domestic voltage, and therefore allows 'AC Coupling'.   The GTI's back charge through the ‘OzInverter’ to the battery bank any surplus power not being used on the OFF GRID or we call our ‘OzInverter’ created MINI GRID.

Three methods of controlling the back charging from GTI's is possible for 'AC Coupling'.

A.   Use the Internal codes/settings in the GTI's to sequential shut down when a specified ac output voltage is reached. This works reasonably well with my system as some installations GTI,s are up to 400 meters away from the ‘OzInverter’ and batteries, and the batteries do push back slightly, but this depends on the cable voltage sag.

B.   Use dc voltage comparators circuit to shut down the GTI ac side with a relay when the DC battery voltage rises above a charging rate voltage. But you will need to run a data cable to all your installations, and again allow for voltage sag.

C.    Use PWM dc controllers that are connected directly to the 48vdc battery bank. These Diversion controllers, (Morningstar Tristar PWM at about 200 Euros each), will regulate the charging and any excess power when the batteries are full and will dump/divert to other permanently connected sources, ie, Air Heaters 2kW each or Hot water heaters, underfloor electric heating, etc.

The above are a cost effective and very reliable system.

A is used most, and C is my guaranteed safety system. Where i do not have access to the GTI internals, then i use B.

For a 19kW PV Array I prefer using 2off 1.7kW & 4off 2.5kW GTI's for 14kW, and using DC Charge controllers for the 5kW as these can gently finish charging that precious 48vdc battery bank.

NOTE,   I have not used a HF, High Frequency GTI, because second hand old heavy toroidal types are easily obtainable and very cheap, plus you get to use the GTI internal MPPT .   'Oztules' and others have experimented with HF types and do not find any real difficulties.

NOTE.  Its best to use GTI’s at a max output of 2.5kW as above this the GTI tends to surge on a long cable connection.


3.     Batteries…. Economically /cost effectively batteries are a problem.

I and many others stick to tried and tested lead acid. Over the past 5 years I have been using SLA, Sealed Lead Acid,  Ultra deep Marine type leisure batteries, or Golf cart type batteries as ‘Oztules’ calls them, bolt stud terminals are best.

There are many other types of the latest technologies batteries that are coming on the market, but it should be remembered that most of these need very tight and very strict charging regimes.

  48off,  12v 110amp SLA, wired up in series of 4 for 48volts, and paralleled up strings to 1300amps or about 62kW.        Life expectancy depends on rate of discharge, but 5 to 15 years is approximate, even longer if you really care for your batteries.  A good tip for longevity is not to allow the voltage on each 12 volt battery to drop below 12.23volts.   Approximate cost for 48off 12v 110ah batteries ….. Euros 5,200

 I am preparing a new book on , "How to make a Plante type Lead acid battery". as today Polypropylene containers are easily available and can be made to any size, along with polypropylene material, (socks for each plate) can also be readily obtained.  My main concern will be weight of a fully built battery 2v cell at about 600amp hour, and i will endeavour to make each battery cell movable/lift by a single man/woman, so probably around the 60kgs.   There is also the lead weight and what will be required to support each sheet and stop it from internal stretching without shorting each plate/sheet.


4.      OzInverter,  We have a book on "how to make a 6kW OzInverter"

The OzInverter is 6Kw rated and can run at 15kW for sometime and can handle surges up to 50kW.

The 48v dc batteries get the OzInverter going, once it has a stable 240vac output at 50HZ, the Grid tie Inverters (GTI) will connect to the Mini Grid created by the OzInverter. Once this happens then the GTI’s will feed the Mini Grid and you can use that 15kW of PV power on the Mini Grid. However if you are not using all the power then some of the 5 GTI’s will shut down as they see the battery voltage rise.

I personally recommend a Mix of Charge controllers with say 5kW of PV going to DC Charge controllers, and the 10kW feeding GTI’s that are AC coupled to the OzInverter created Mini Grid.

Cost of materials for the OzInverter,  all new parts, 800 Euros, scavenging cores, copper etc, 350 Euros.p

5.          Standby Power supply.

In most instances we are talking about a 5kW diesel, Petrol or gas generator.

The generator output is normally very unstable in both the AC voltage and the HZ sine wave. It is highly unlikely that it can directly connect and synchronise with the OzInverter.

  So its either a heavy duty Change over switch, or the generator is so arranged to DC charge the batteries direct through a dedicated 48v DC charger.  Generator 500 to 1500 Euros.



Conclusion

….  Using the above approximate costs we are looking at about 12,800 Euros for the basic installation parts for a 15kw PV and 6kW of available 240vac.     Please remember there will be other costs, brackets, PV rails, cables switches etc.

Remember that in ambient light when the sun is not shining the PV can still be generating 20% of the 15kW, and that is handy in those grey and gloomy winter days.

So if at present you are paying your electricity supply utility company 3,000 Euros per year, then as a rough guide your initial installation costs will be recouped within 5 years, being fair then 10 years is a more realistic payback time.

However, you may need to run the generator and its cost, and don’t forget to put some money aside for batteries replacement in 8 years or so. One thing for certain,  you will change your life style, ie, when the sun shines do all that washing with the washing machine, heating the hot water when the sun shines, etc, etc.

Totally Off Grid With Solar.

2018……… The below is a very good , up-to-date, synopsis of the state of Renewable Energy for the normal Domestic Household that is very realistic and achievable.

John Tulloch,    Flinders Island, Australia,        (‘Oztules’ on  good World Renewable Energy Forums)


 “There are a few installations down here now that came in around the $15000 dollar mark.

They use 10kw of solar, home brew inverter, home brew solar controller, and 35kwh battery banks.

They have no other form of power except they do have generator change over if necessary.

So far the generator  has never been required but for one exception... out on one of the islands parks and wildlife had a rat eradication team over in the worst sort of solar weeks we have ever seen 10 days of heavy rain... and 15 people... this was a bit much, and the genny ( 5hp with modified car alternator) ran for a day..... thats it... power was rationed after that as the 15 city folk had no idea of conservation, and left the shearing shed lights on all night (600w for 14 hrs before the sun comes up), 15 ;lots of phones and ipads, and coffee urn all day and night etc... it was not a fair go really...

Apart form that event, there has been no generator support that I know of on the other sites.

As a rough rule of thumb at 40 degrees south/north, if you normally use 15kwh/day then use 15kw of solar panels.... if that includes hot water, maybe a few more.

If you don't go silly on the very dark days, ( not just overcast, but dark) you should only use the genny for maintenance starts.. just to see if it still starts.

I find that 10kw will generate about 8-10 amps in truly terrible light ( 48v system), and more than you can choke on when it is light cloud or sun.... thats 400-500w.

If the heavy cloud brightens up even a little bit, your suddenly up in the 20-40 amp and more but still 8/8 cloud and pretty heavy... 8/8 cloud of single layer, and your back up in the 40-80 amps range... so it takes a miserable day to pull you down.

If you go up to the 15kw arrays, your making more than normal quiescent current no matter what the weather is, and should get 6-7kwh at the very worst... you can live with this as a generality... ie fridges, freezers, lighting and most other stuff except for heating and cooling and hot water.

With the cost of solar panels now, particularly second hand 250 watt panels, that 15kw array is cheap as nuts.... probably in the $7000 range, which leaves $6000 for batteries... and thats too much really, and a few thousand for inverter and controller and fixing materials.

Lets be clear, there is no need for a monster battery or an expensive battery, better to use golf cart ones that will last 5 years, and replace them every 5 years.

6x220ah American batteries can be found for $200, so a 24 battery bank will only be $5000 ( you will probably get more years than that as they will rarely be discharged beyond 25%... and that should give 3000 cycles)

Stylish expensive cells ( whilst I like them very much) are not necessary to produce a better system.

Panels are key and the only thing that is critical, charge controllers are of little interest if you make your own, and mppt is next to useless for this setup... simple 150amp pwm will do fine... maybe $100, inverter around the $300 if using old aerosharps or inspires.... point the panels any where you have access too. N, S, E ,W.... east is particularly useful to get the recharge going early, so a 3-4 kw looking east is a good thing, a few kw west, the rest can be almost flat... just enough to self clean, pointing any place.

It really is cheap to go off grid if you ignore the experts, and their fancy add on's.

You only need expensive add ons ( auto generator support and fancy software in your inverter) if your system is inadequate to start with, and now that can be solved with panels..... and you can build 2 of everything for next to nothing so redundancy is a given.

The world has changed simply because power is easy to get now panels are cheap. Thats my 2 cents worth, and it is working on installations down here.

OzInverters are now only about $100 to build the electronics now, so I have plenty of spare change over units now.  ( oddly, non have failed yet... I felt sure the island ones would as they are the hardest to get to... but no..)

When the name brands fail ( and they do), it has taken weeks for the owners over here to get back on line.... no fault of the Australian manufacturers/agents, but remoteness is everything, and real inverters are not trivial to transport off island and back... could build half a dozen for just the cost of freight alone if we use air freight.

All kinds of things become irrelevant, such as cooling for panels.. we don't want any, so you can clamp directly to the roof if you want, as ventilation is a waste of effort.. we actually want attenuation when it gets hot... coz that means the suns out, and we have probably 7 times the power we actually want then... some losses would be more than welcome. Line loss is a good thing now for the same reason.. when there is lots of current, there is actually way way too much, so losses are irrelevant too, and when the light is poor, the losses will be tiny/non-existent.

Mppt is useless for the same reason, may help when the light is poor, but that will be very rare for the complicated electronics that that brings, and the thousands of dollars that will add to the system.. for what? (15kw of mppt is not cheap... 15kw of pwm is a hundred bucks or so)

But I am a bit different in my views too.       ...........oztules                                  Flinders Island, Australia.
